This section is for current feature set up and for future features.

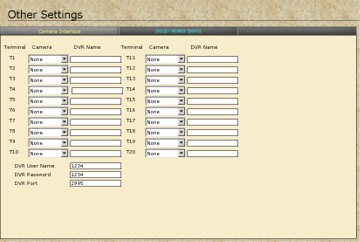

Camera Interface
Each terminal can have a camera interface associated with it. Camera interface is a separate module. Contact an authorized Win-EZ dealer for more information on purchase.
If information is wanted from Terminal 1 (T1) Assign the camera to the terminal. Enter the DVR name for each camera. DVR's have a 16 camera limit so multiple DVR's may be needed. The DVR name may be an IP address or the network name for each DVR Machine.
DVR User name, password, and port is standard but can be changed for security if necessary. If more than one DVR is being used (16+ camera's) each machine is should be set to the same User Name, Password and Port.
When a camera is assigned to a specific terminal, any command or keystroke assigned in Other Settings/ Detail Writer Items will display on screen.

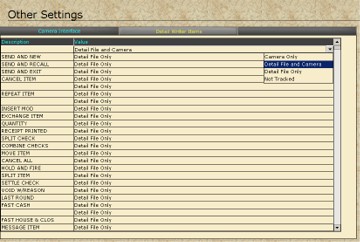

Detail Writer Items
Detail Writer Items is where each command or keystroke is assigned for tracking purposes. There are 4 possible settings for almost all commands in Win-EZ. The settings are: Camera Only, Detail File and Camera, Detail File Only, and Not Tracked.
If Camera Only is assigned to "Cancel item" that will display function will display on the DVR interface display.
If Detail File and Camera is set, all items will display on DVR screen and to a detail file located in Modules/ Detail Viewer.
If Detail File Only, the items will be tracked in Detail Viewer for historical purposes.
If Not Tracked is set, the command or function will not display or be tracked in Detail Viewer.
